Xiamen ZONEWU LoRaWAN water quality Mg²⁺ ion sensor, as a low-power Internet of Things sensor, integrates data collection, water quality monitoring and transmission functions, and uses LPWAN wireless technology to realize these functions.The sensor can effectively resist external light interference with the help of filtering algorithms, and also has the ability to automatically calibrate data according to temperature, which is very suitable for long-term water quality monitoring. In addition, it follows the standard LoRaWAN protocol, which enables long-distance wireless transmission of data, is easy to operate, and provides efficient and stable technical support for water quality monitoring.
Product Model :
LW110-MgPower Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
150gDigital Long-term Monitoring LoRaWAN Water Quality Mg2+ Ion Sensor
xiamen ZoneWu LoRaWAN Water Quality Mg2+ Ion Sensor can accurately measure the magnesium content in water wirelessly.With its ability to automatically calibrate measurement data based on water temperature, it effectively overcomes interference caused by environmental changes and significantly improves the accuracy of measurement results.
xiamen ZoneWu LoRaWAN water Quality Mg2+ Ion Sensor Features:

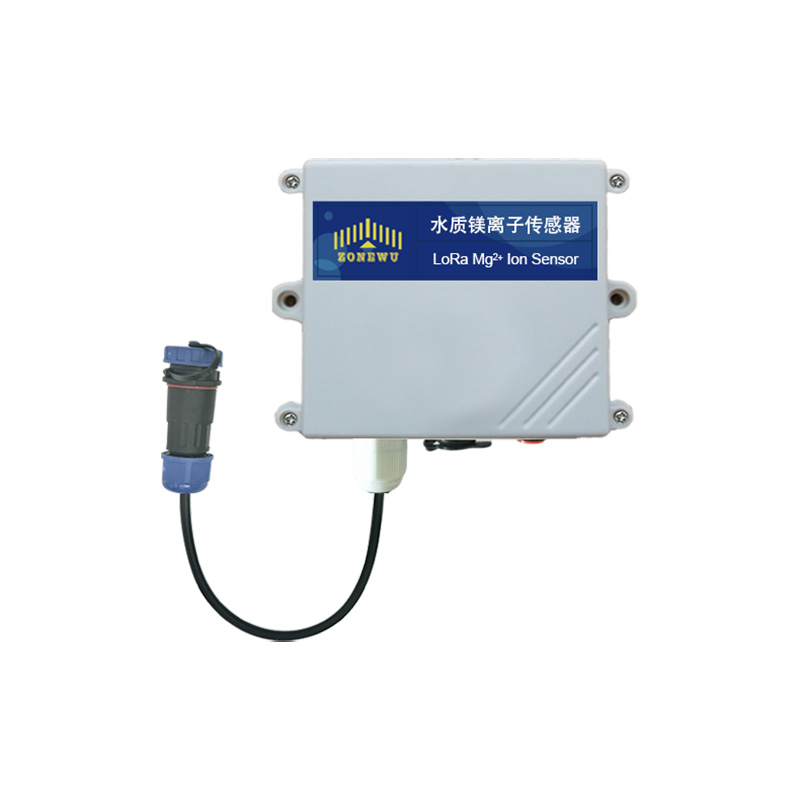

When this thing connects to the LoRaWAN collector, it uses an aviation connector, which you may have seen on some aviation-related devices, and it makes the two connections secure.
Once they are connected, they can achieve wireless communication. There is no need to use a bunch of wires to transmit data like before. With wireless communication, it is much more convenient to use, and there is no need to worry about the wires being damaged.
During industrial production, a lot of wastewater is generated. The situation of ions in these wastewater is very important, and if it is directly discharged, it may pollute the environment. With this equipment, the ion situation in the waste water can be tested at any time, letting the company know whether the wastewater meets the standard.
Such as rivers, lakes, these surface water, related to the ecological environment around us. Through this device, we can monitor it in real time. Once the ion content is abnormal, we can find it in time and protect our water source and surrounding ecology.
Drinking water is directly related to our health. Using it to detect the ion status of drinking water can ensure that the water we drink is safe and compliant, so that everyone can drink with more confidence.
In many industrial production, there are strict requirements for the concentration of ions in water. For example, in some chemical production, the inappropriate ion concentration may affect the quality of the product. This device can automatically continuously test online, helping the factory to adjust production in a timely manner and ensure product quality.
Product Parameters
| Power Supply | 12/24V DC |
| Weight | 150g |
| Operating Emperature | 0~40℃ |
| Measuring Range |
0-100mg/L, 0-1000mg/L(default) Ionic sensors are more susceptible to interference from other ions in the water and can easily cause membrane head failure. Please purchase with caution ! |
| Measurement Error | ±5%FS（25℃） |
| Resolution Ratio |
0-100mg/L: 0.01mg/L 0-1000 mg/L :0.1mg/L |
| Temperature measurement range |
0~50℃,Resolution Ratio:0.1℃ (When manually compensating for temperature, it is set to 25 ℃ by default.) |
| Electrode usage cycle | Normal use for 2 years |
| Pressurization | 0.6Mpa |
|
Transmitter Line length |
Default 5m (other lengths can be customized) |
| Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A |
| Reporting cycle | 60min(Default ) |
| Battery Life |
≤3 years （Depending on the reporting cycle） Note: Due to the high power consumption of Ion sensor, it is not recommended to use shortcycle data reporting. |
|
Communication Protocol Equipment information (Reference) |
LoRaWAN,LoRa TDMA Networking AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3 |
Product Applications
1. High-precision measurement: The water quality magnesium ion sensor can accurately measure the concentration of magnesium ions in the water sample and provide high-precision measurement results.
2. Real-time monitoring: These sensors can achieve continuous online monitoring, real-time reflection of water quality changes, to provide a strong basis for water environment management.
3. Strong anti-interference ability: In the complex water quality environment, the water quality magnesium ion sensor can effectively prevent various interference signals to ensure the accuracy of measurement.
4. Multi-functional integration: some sensors can be integrated with other water quality parameter sensors.
5.Easy to operate: It is usually equipped with a simple and easy to understand operation interface and automated measurement procedures, and non-professionals can also easily operate, measure and read data.
6.Easy maintenance: The sensor uses deionized water and diluted magnesium standard solution for cleaning and maintenance, easy to operate.

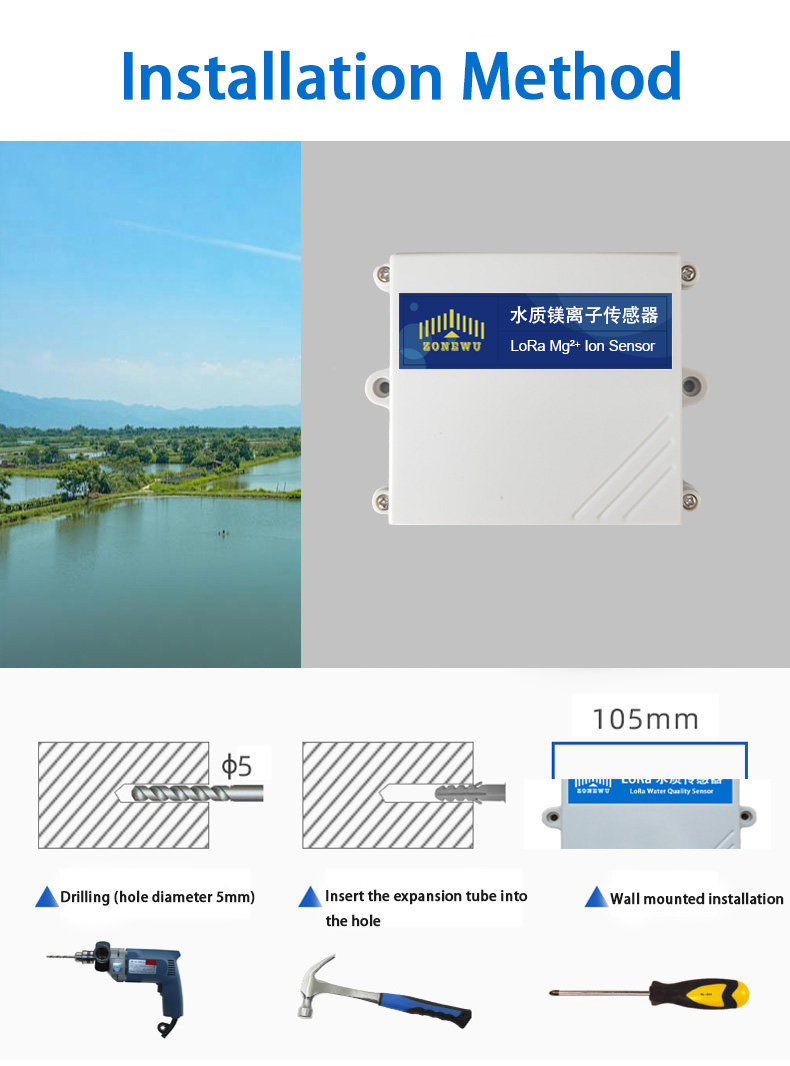

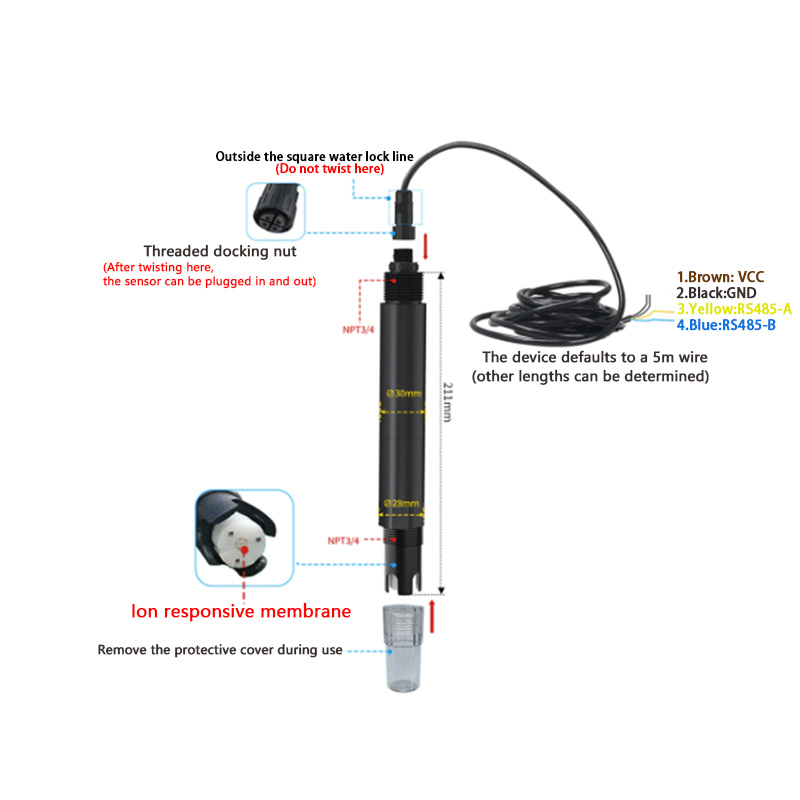

Magnesium Ion Transmitter Size and Installation
1.Submerged installation: The lead wire of the equipment is passed through
the waterproof pipe, and the 3/4 thread on the top of the equipment is connected
with the 3/4 thread of the waterproof pipe with raw material tape.Make sure that
the top of the equipment and the equipment lines are free of water.
2. Pipe Installation: Connect to the pipe through the 3/4 thread of the device.

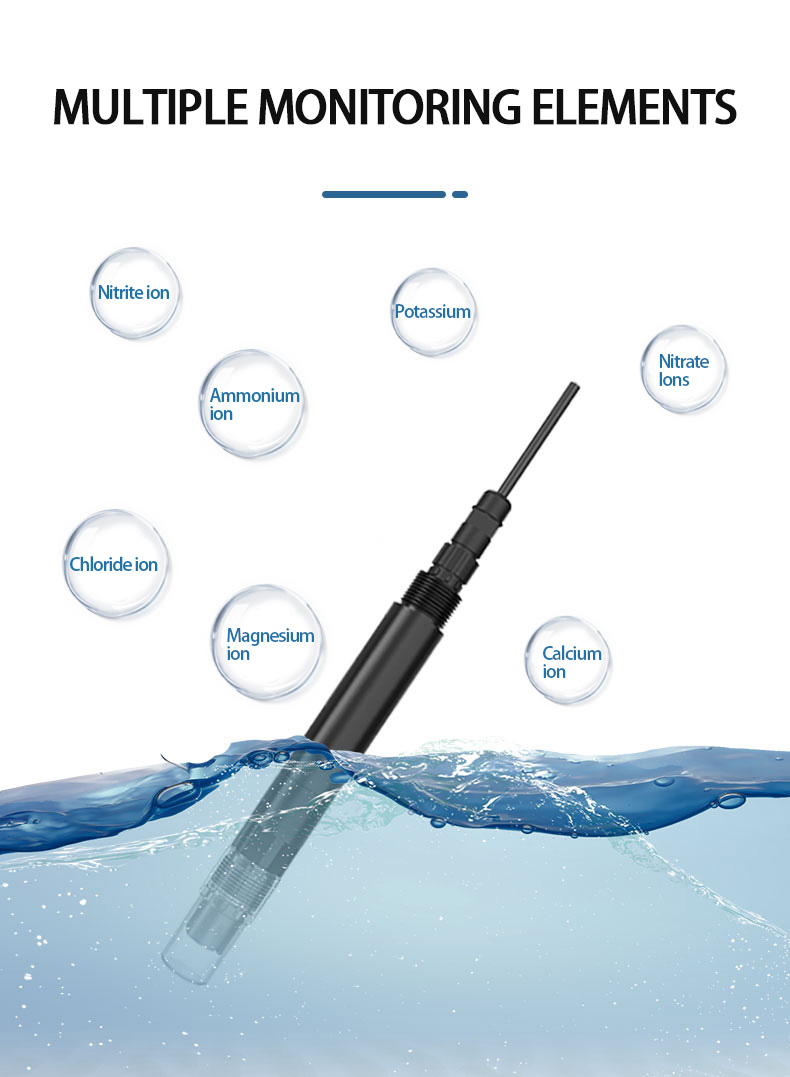

Detailed Images
Common knowledge of Mg2+ Ion
What are magnesium ion sensors used for
Magnesium ion sensors are mainly used to measure the concentration of magnesium ions in water, by which they can clearly know how much magnesium ion is in the water.
Why does magnesium ion concentration be tested in industry
In many industrial production processes, the concentration of magnesium ion will affect the quality of products and the production process. For example, in the electroplating and pharmaceutical industries, controlling the magnesium ion concentration can ensure the product is qualified and production is smooth.
What effect does it have if the concentration of magnesium ions in water is too high or too low
The concentration is too high, the water may have a bitter taste, and it is easy to form dirt in pipes and containers; If it is too low, for aquatic organisms that rely on magnesium ions to survive, it may affect their growth and reproduction, and disrupt the ecological balance of the water.
Application Scenarios

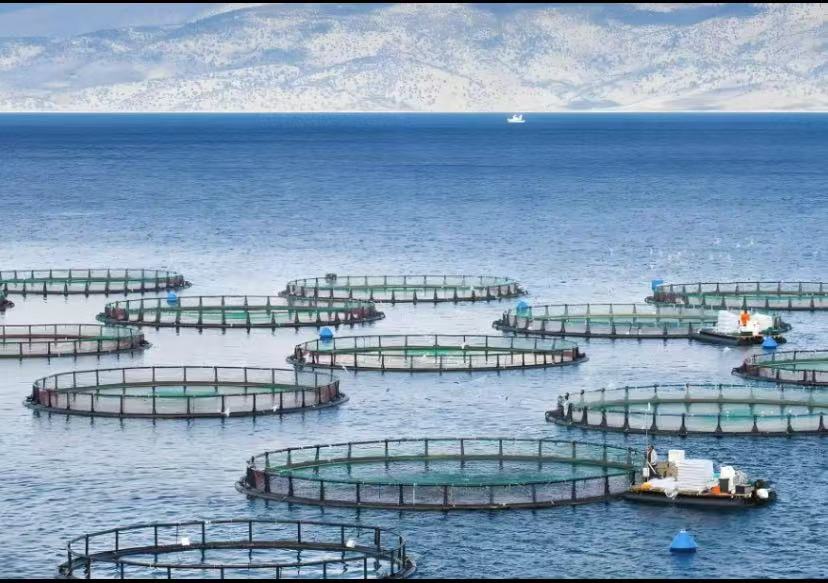

Aquaculture
Monitor the calcium ion concentration of aquaculture bodies to ensure the health of aquaculture organisms and the stability of water quality.
Seawater Monitoring
Monitoring the concentration of calcium ions in seawater is conducive to marine ecological research and the regulation of seawater aquaculture.

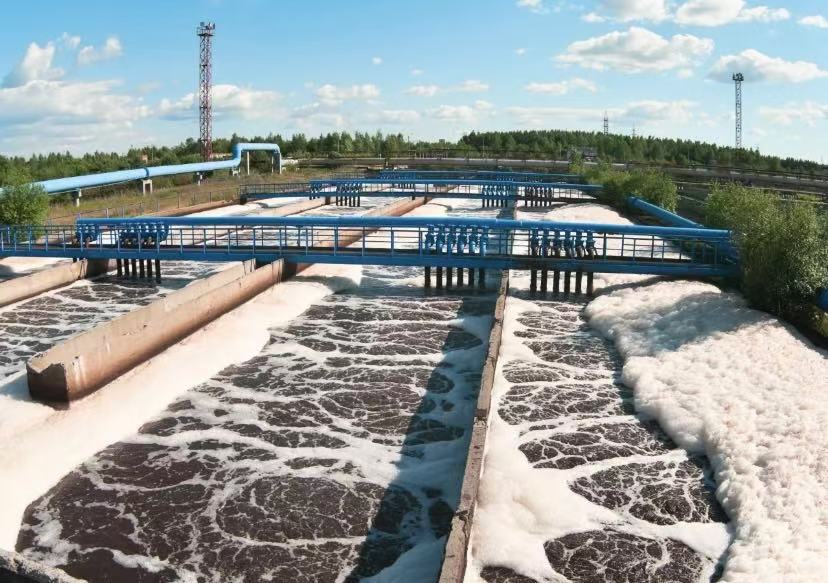

Industrial Wastewater
Monitoring the concentration of calcium ions in industrial wastewater helps with wastewater treatment and achieving compliance with discharge standards.
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.
